D30-Dual Remote Control
- Control Range: 30km (Subject to environmental conditions)
- Transmission Frequency: 2.4G + 5.8G Dual Band
- Display: 7-Inch 1920×1080 1000nits Screen
- System & Storage: Android 13 | 4+32G Internal Storage
- Battery & Endurance: 2S 10000mAh | 5.5H Battery Life | 30W Fast Charge
- Expansion: Dual Link Support
Item List
Remote Control x1
Receiver x1
Accessories
Name
Illustration
Quantity

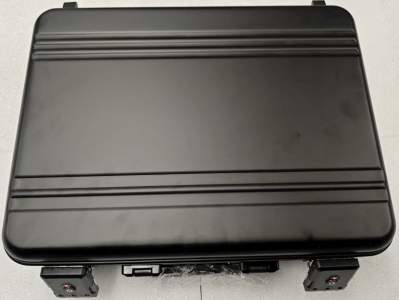

Packaging Box
1
Charger
1

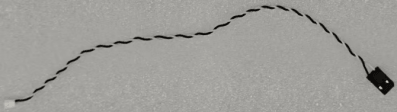

SBUS Cable
1
Data Transmission Cable
1
Remote Control Lanyard
1

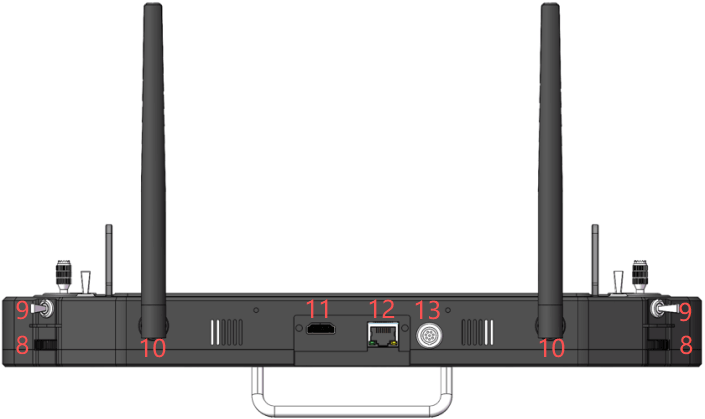

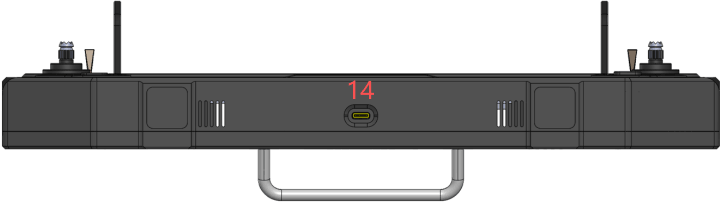

Product Description

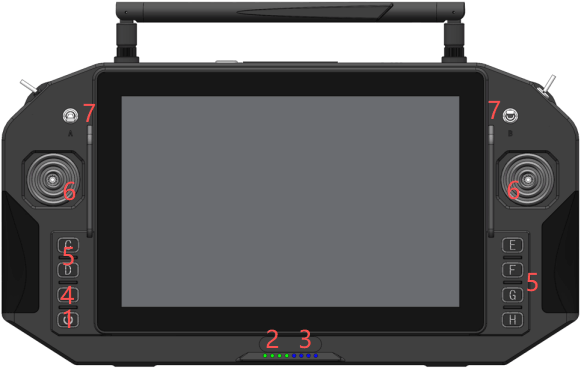

· Remote Control
| No. | Part | No. | Part |
|---|---|---|---|
| 1 | Power Button | 8 | Rotary switch |
| 2 | Battery indicator light | 9 | Three-position switch |
| 3 | Signal indicator light | 10 | RF Head Antenna |
| 4 | Undetermined | 11 | HDMI interface |
| 5 | Two-position switch | 12 | Network port |
| 6 | Joystick | 13 | Signal Expansion Port |
| 7 | Three-position switch | 14 | USB port |

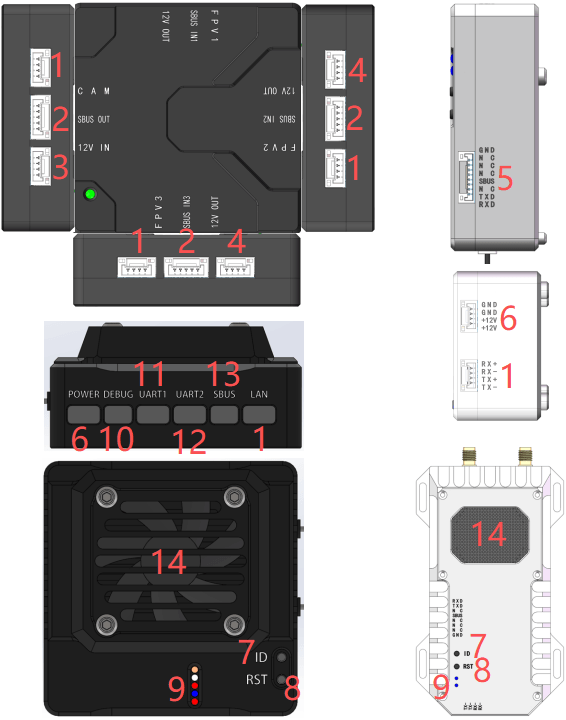

· Receiver
| 1.Network port | 8.Reset button |
| 2.SBUS and Data Transmission | 9.Signal indicator light |
| 3.12V power supply input | 10.Debugging Interface |
| 4.12V power supply output | 11.V3 Data Transmission |
| 5.V4’s SBUS and Data Transmission | 12.Undetermined |
| 6.12V power supply output | 13.V3 Data Transmission |
| 7.Frequency Matching Button | 14.Cooling fan |
Pin Definitions (From Left to Right)
| ③④⑥POWER | ⑩DEBUG | ⑪UART1 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 12V-IN | 12V-IN | GND | GND | RX | TX | GND | NC | RX | TX | GND |
| ②SBUS and Data Transmission | ||||
|---|---|---|---|---|
| SBUS-RX | SBUS-TX | Data Transmission RX | Data Transmission TX | GND |
| ③UART2 | ⑬SBUS | ①LAN (From left to right: 6321) | |||||
|---|---|---|---|---|---|---|---|
| Undetermined | NC | SBUS | GND | RX- | RX+ | TX- | TX+ |

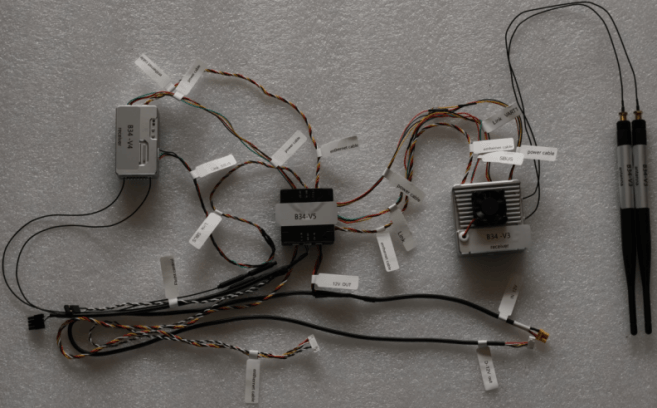

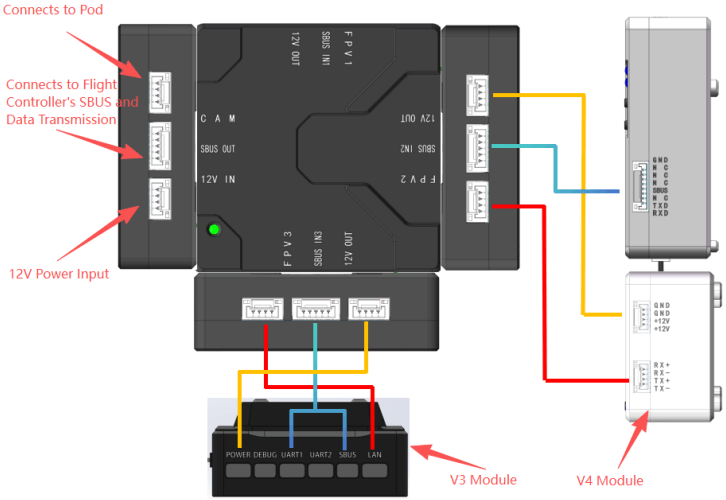

Receiver-End Wiring Diagram
D30-Dual Specifications
Remote Control
Name
D30-Dual Remote Control
Dimensions
370×250×105mm
Control Range
30km (Subject to environmental conditions)
Weight
2184g
Transmission Frequency
2.4G / 5.8G
Passageway
4 Three-position switches, 6 Two-position switches, 2 Rotary switches
Operating system
Android
Operating temperature range
-10~+55℃
Screen Size
10-Inch
Resolution
1920×1080
Brightness
1000Nits
Internal Storage
4+64G
Battery Type
Lithium battery
Battery Capacity
3S 10000mAh
Charging Time
1.5H
Battery Life
6H
Charging Method
65W fast charging, Type-C port
Power On/Off Method
Press and hold to power on, press and hold to select power off
For use with the pod
External Ports
Type-C, HDMI, Ethernet port, Signal expansion port
V3 Receiver
Dimensions
65×65×32mm
Frequency
2.4 / 5.8G
Operating Voltage
12V
Operating Current
<1A
Antenn
Standard Rod Antenna
Weight
166g
Operating Temperature Range
-10~+55℃
External Interface
Network port,Data transmission
V4 Ground Station
Dimensions
130×100×27mm
Frequency
6G
Operating Voltage
Power from the remote control
Operating Current
<1A
Antenn
Fiberglass antenna
Weight
246g
Operating Temperature Range
-10~+55℃
External Interface
Aviation connector, RJ45
V4 Receiver
Dimensions
60×38×23mm
Frequency
6G
Operating Voltage
12V
Operating Current
<1A
Antenn
Flexible antenna
Weight
142g
Operating Temperature Range
-10~+55℃
External Interface
Network port, data transmission
Switch
Dimensions
50×50×16mm
Frequency
30g
Operating Voltage
12V
Operating Current
<3A
