D100 Remote Control
- Control Range: 100km (Subject to environmental conditions)
- Transmission Frequency: 2.4G + 5.8G Dual Band
- Display: 7-Inch 1920×1080 1000nits Screen
- System & Storage: Android 13 | 4+32G Internal Storage
- Battery & Endurance: 2S 10000mAh | 5.5H Battery Life | 30W Fast Charge
- Expansion: Up to 9 Channels
Item List
Remote Control x1
Receiver x1
Accessories
Name
Illustration
Quantity

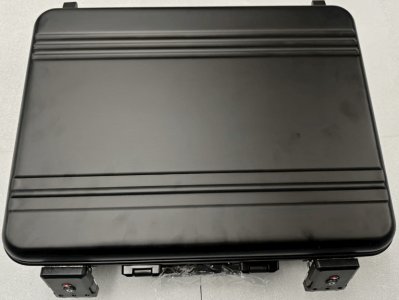

Packaging Box
1
Flat-panel antenna
1
Fiberglass antenna
1
Charger
1

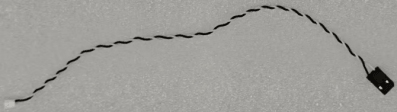

SBUS Cable
1
Data Transmission Cable
1
Remote Control Lanyard
1
Product Description
· Remote Control

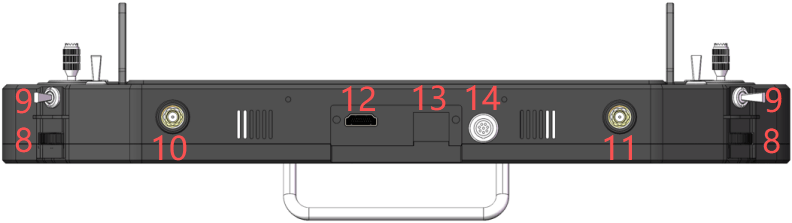

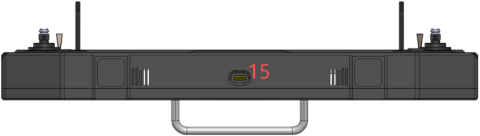

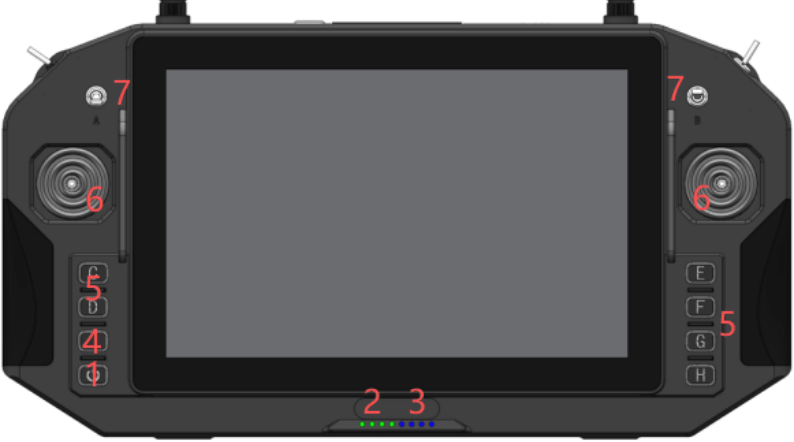

| No. | Part | No. | Part |
|---|---|---|---|
| 1 | Power button | 9 | Three-position switch |
| 2 | Battery indicator light | 10 | Fiberglass antenna |
| 3 | Signal indicator light | 11 | Flat-panel antenna |
| 4 | Undetermined | 12 | HDMI port |
| 5 | Two-position switch | 13 | Network port |
| 6 | Joystick | 14 | Signal expansion port |
| 7 | Three-position switch | 15 | USB port |
| 8 | Rotary switch | – | – |

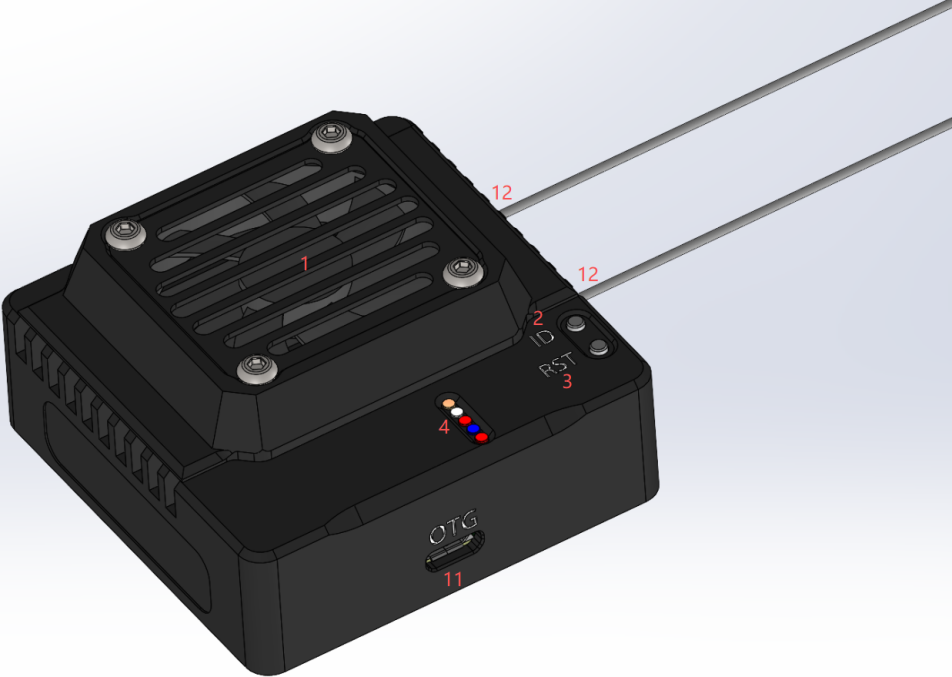

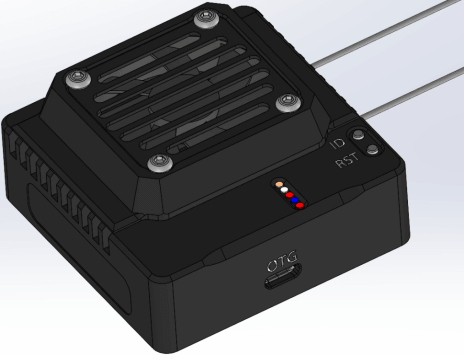

· Receiver
| 1.Cooling fan | 7.Data transmission interface |
| 2.Pairing button | 8.Undetermined |
| 3.Reset button | 9.SBUS interface |
| 4.Signal Indicator light | 10.Network port |
| 5.Power supply interface | 11.OTG interface |
| 6.Debug interface | 12.RF antenna |

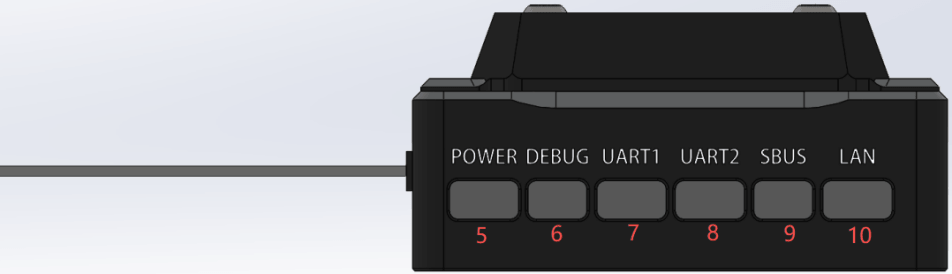

Pin Definitions (From Left to Right)
| POWER | DEBUG | UART1 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 12V-IN | 12V-IN | GND | GND | RX | TX | GND | NC | RX | TX | GND |
| UART2 | SBUS | LAN (From left to right: 6321) | |||||
|---|---|---|---|---|---|---|---|
| Undetermined | NC | SBUS | GND | RX- | RX+ | TX- | TX+ |
D100 Specifications
Remote Control
Name
D100 Remote Control
Dimensions
370×250×105mm
Control Range
100km (Subject to environmental conditions)
Weight
2184g
Transmission Frequency
2.4G / 5.8G
Passageway
4 Three-position switches, 6 Two-position switches, 2 Rotary switches
Operating system
Android
Operating temperature range
-10℃~+55℃
Screen Size
10-Inch
Resolution
1920×1080
Brightness
1000Nits
Internal Storage
4+64G
Battery Type
Lithium battery
Battery Capacity
3S 10000mAh
Charging Time
1.5H
Battery Life
6H
Charging Method
65W fast charging, Type-C port
Power On/Off Method
Press and hold to power on, press and hold to select power off
For use with the pod
External Ports
Type-C, HDMI, Network port, Signal expansion port
Flat-panel antenna
Operating Frequency Band
2.4G / 5.8G
Polarization
Vertical
Gain
16dBi
Maximum power
100W
Horizontal Beam Width
35°
Vertical beam width
35°
Dimensions
391×291×52mm
Weight
2022g
Interface type
N-Female
Operating Temperature Range
-40℃~+70℃
Fibreglass antenna
Operating Frequency Band
2.4G / 5.8G
Polarization
Vertical
Gain
8dBi
Maximum power
100W
Radiation pattern
Omnidirectional
Interface type
N male connector
Dimensions
Length: 296mm
Diameter: 24.5mm
Diameter: 24.5mm
Weight
86g
Receiver
Dimensions
65×65×32mm
Frequency
2.4G / 5.8G
Operating voltage
12V
Operating current
<1A
Antenna
Standard rod antenna
Weight
166g
Operating Temperature Range
-10℃~+55℃
External interface
Network port
Data transmission
Data transmission
