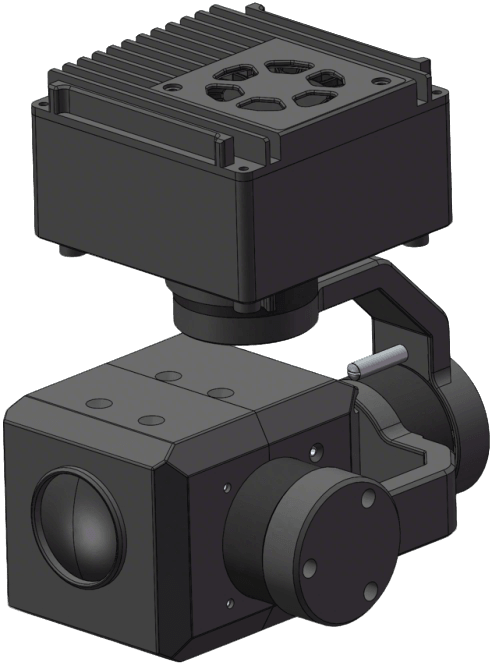

AI-DS1
- Image Resolution: 1920×1080
- Weight: 211g
- Power Consumption: 6W
- Power Supply: 12V
Product Description

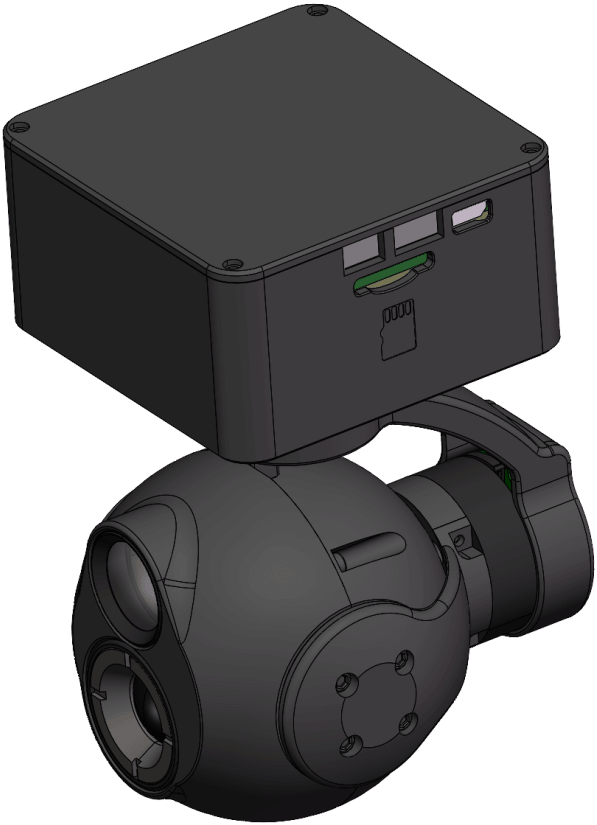

Pin Definition
1. Cooling fan
4. TF Card
2. VIDEO & SBUS
5. Servo Tuning
3. PWR & CTRL
VIDEO & SBUS
PIN1
TX
Ethernet
PIN2
TX
PIN3
RX
PIN4
RX
PIN5
NC
NC
PIN6
NC
PIN7
SBUS
SBUS-S
PIN8
GND
SBUS-G
PIN9
USB_DP
5V@1A Reserved (for power output)
PIN10
USB_MP
PIN11
GND
PIN12
5V.OUT
PWR & CTRL
PIN1
UART_RX
Receive
PIN2
UART_TX
Transmit
PIN3
VM
Reserved
PIN4
GND
Power GND
PIN5
Vin.12V
12V@3A (Power Input)
PIN6
Vin.12V
PIN7
GND
PIN8
GND
Servo Power Supply
PIN1
Vin.12V
PIN2
Vin.12V
PIN3
GND
PIN4
GND
PIN5
NC
PIN6
NC
Wiring Instructions

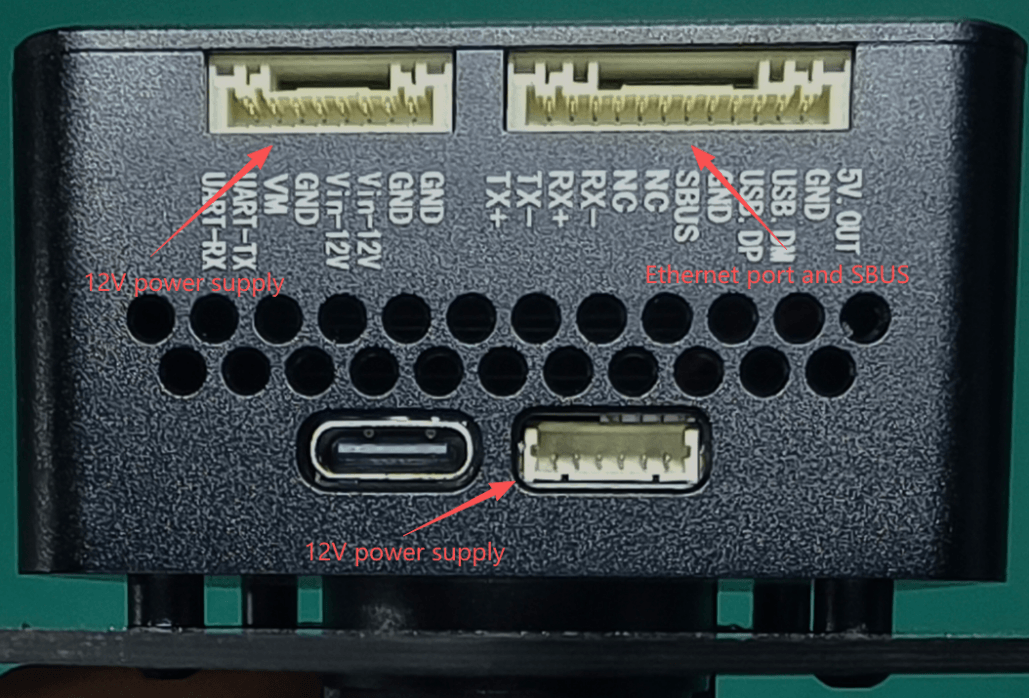

- Two 12 V power supplies must be provided to the gimbal, as shown in the diagram below:
- The Ethernet port must be connected to the receiver’s LAN port.
- The SBUS port can be connected to the receiver’s SBUS interface.
RTSP Stream Address
rtsp://192.168.144.108/live/0
Function Definition
- Pitch: Pitch control, default 14 channels
- Yaw: Yaw control, default 13 channels
- Home/Down: Back to center/down, default 11 channels
- Pip: Picture-in-picture, default 12 channels
- IRColor: False color switching, channel default none
- REC/PIC: Video/photo, default 6 channels
- Zoom: Zoom in/out, channel default none
- Center Point Tracking: Center point tracking, channel default none
- Temperature Drift Calibration: Temperature drift calibration, channel default no
Video Storage Location
- Insert an SD card into the gimbal. Ensure the SD card has fast write speed and good quality.
- Photos are stored in the photo folder on the SD card.
- Videos are stored in the video folder on the SD card.
Specifications
Specification Parameters
Model
AI-DS1
Dimensions
54×56×94mm
Power Supply
12V
Weight
211g
Power Consumption
6W
Operating Environment
-10℃ to +55℃
Main Application
Drone aerial photography
Storage Environment
-20℃ to +60℃
Roll Range
-20°～+20°
One-Click Centering Function
Support
Pitch Range
0°～-90°
One-Click Down Function
Support
Yaw Range
-85°～+85°
Image Resolution
1920×1080
Output Interfaces
Video: Network, HDMI Control: UART TTL, UDP, SBUS
Zoom
8x Digital Zoom
Network Output Mode
1080 30fps
Video Encoding
H264
Field of View
54.4+/-3°
Storage
SD card storage (SanDisk 32GB, Read Speed 120MB/s)
IR Lens
640 × 512, 9.1mm Lens, 8x Digital Zoom
Disclaimer
- Do not move or shake the gimbal during power-on.
- The gimbal only supports a 12 V power supply; do not provide other voltages.
- Handle the lens with care to prevent damage. If there is dust, use a lens cloth or dust-free cloth to clean it in a clockwise direction.
